OEM Flush Surface Metal Din Rail Single Phase Electrical DB Box
Product Description:
SN series box can be divided into two kinds, which inlude concealed mounted type and open mouted type.
Our distribution box is made of plastic panel and iron bottom.
Two terminals (ground connection and zero connection)in the box are easy for the user wiring and routing.
This product is applicable to the modular terminal circuit with AC of 50 Hz, rated voltages of 220V and 380V.
Technical parameter:
| Model | Type | Phase | Way | Main switch |
Flush
Surface | Din-Rail | Single | As follows | ELCB
Isolator |
| Single phase | H | W | D | E | F |
| 4+2 WAY | 400 | 245 | 90 | 380 | 225 |
| 6+2 WAY | 400 | 280 | 90 | 380 | 260 |
| 6+4 WAY | 400 | 280 | 90 | 380 | 260 |
| 8+4 WAY | 400 | 315 | 90 | 380 | 295 |
| 8+6 WAY | 400 | 315 | 90 | 380 | 295 |
| 10+6 WAY | 400 | 350 | 90 | 380 | 330 |
| 10+8 WAY | 400 | 350 | 90 | 380 | 300 |

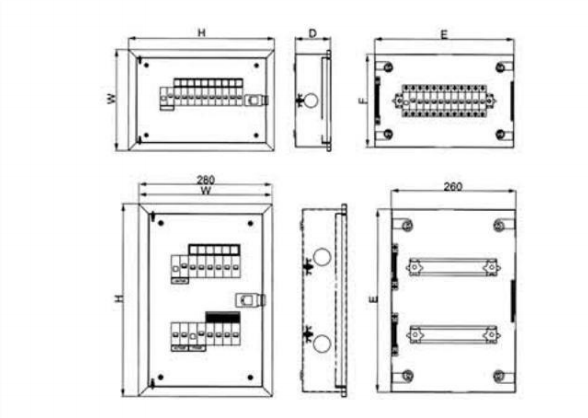

Dimensions:
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
